HDMI 2.0 8x 8 Matrix

HDMI 2.0 to Fiber Extender

An HDMI 2.0 to Fiber Extender uses fiber optic cables to transmit high-bandwidth 4K @ 60Hz HDMI signals over long distances, overcoming the distance limitations of copper HDMI cables.

Power / Signal cables

customized length of power cables and signal cables

An HDMI 2.0 8x8 Matrix is a professional A/V switcher that connects 8 HDMI sources (like Blu-ray players, game consoles) to 8 displays (TVs, projectors) and lets you route any source to any output, supporting 4K@60Hz, HDR, HDCP 2.2, and high-bandwidth audio for seamless, flexible video distribution in homes, businesses, or control centers. Key features include independent output control, 4K-to-1080p downscaling for mixed displays, audio extraction (SPDIF/Analog), and multiple control methods (IR, RS-232, Web GUI).

Common Applications

Home Theaters: Distribute multiple sources (cable box, console, streamer) to various rooms/TVs.
Commercial Spaces: Perfect for bars, restaurants, or digital signage.
Conference Rooms: Seamless presentations from different devices to multiple screens.
Control Centers: Distribute surveillance feeds or data to command center displays.

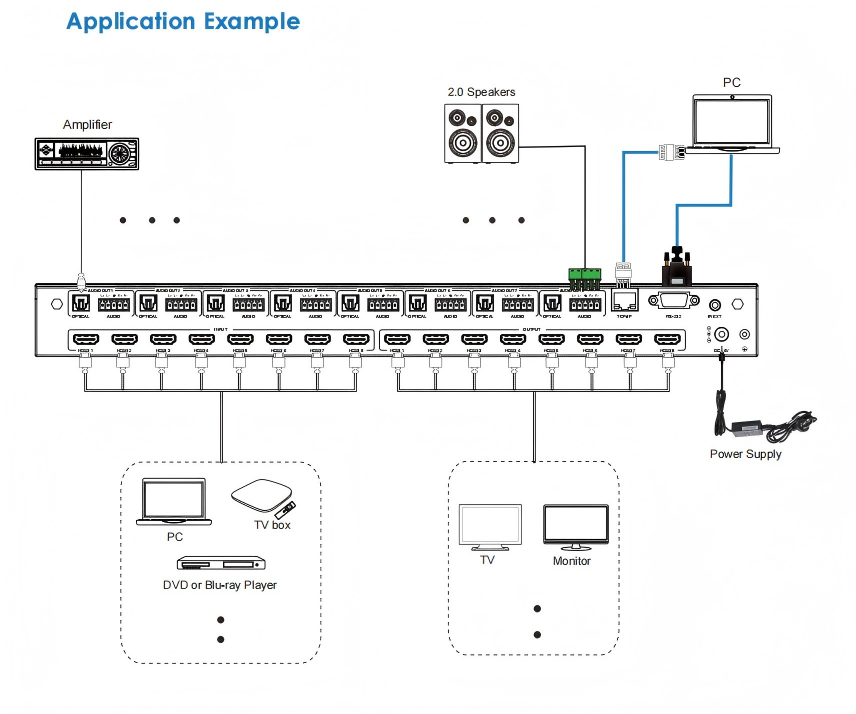

HDMI 2.0 8x 8 Matrix application.png

Product Specification

Key Features & Capabilities

Connectivity: 8 HDMI Inputs, 8 HDMI Outputs.
Video Standards: HDMI 2.0, HDCP 2.2, supporting 4K (3840x2160) at 60Hz, 8-bit 4:4:4, HDR (HDR10, Dolby Vision).
Bandwidth: 18 Gbps.
Audio Support: LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio, with audio de-embedding options.
Downscaling: Each output can downscale 4K content to 1080p for displays that don't support 4K.
Control: Front panel buttons, IR remote, RS-232, Web GUI (via LAN/RS-232), offering extensive management.
Smart EDID: Manages EDID for better compatibility with various sources and displays.
Power Loss Memory: Restores previous connections after power failure.
