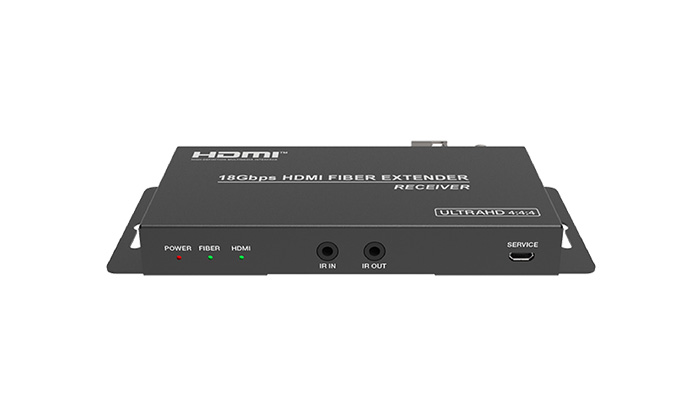

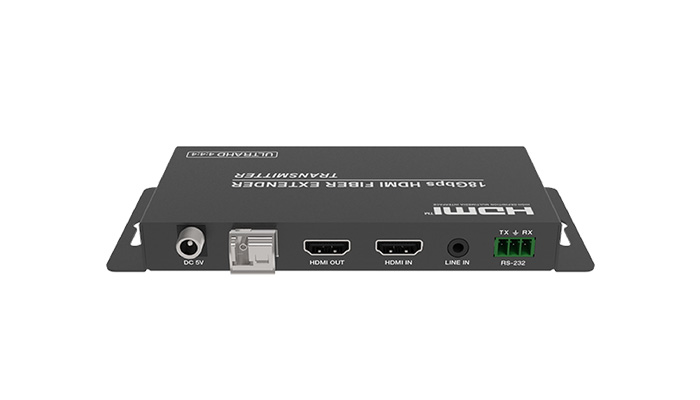

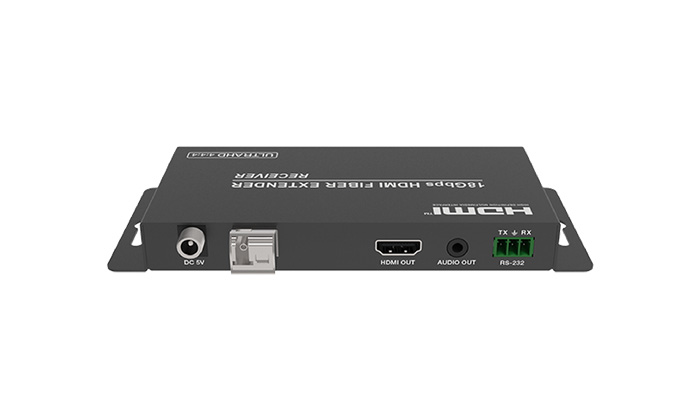

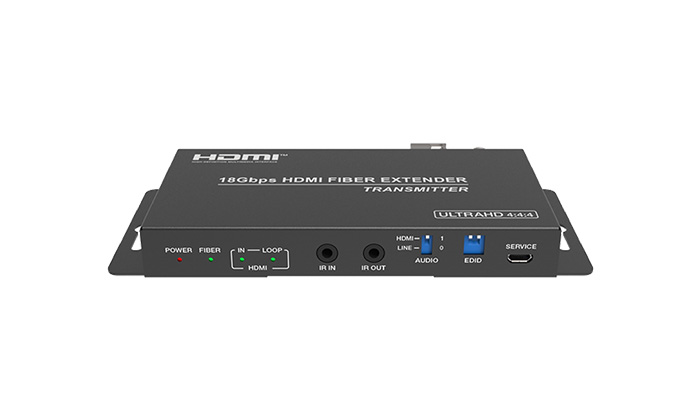

HDMI 2.0 to Fiber Extender

An HDMI 2.0 to Fiber Extender uses fiber optic cables to transmit high-bandwidth 4K @ 60Hz HDMI signals over long distances, overcoming the distance limitations of copper HDMI cables.

Power / Signal cables

customized length of power cables and signal cables

An HDMI 2.0 to Fiber Extender uses fiber optic cables to transmit high-bandwidth 4K @ 60Hz HDMI signals over long distances, overcoming the distance limitations of copper HDMI cables, supporting features like HDR and HDCP 2.2, and offering immunity to electromagnetic interference for reliable, uncompressed video extension in professional AV, large displays, and conferencing systems. These kits typically include a transmitter and receiver and use LC connectors with single or multimode fiber, allowing transmission from hundreds to thousands of feet.

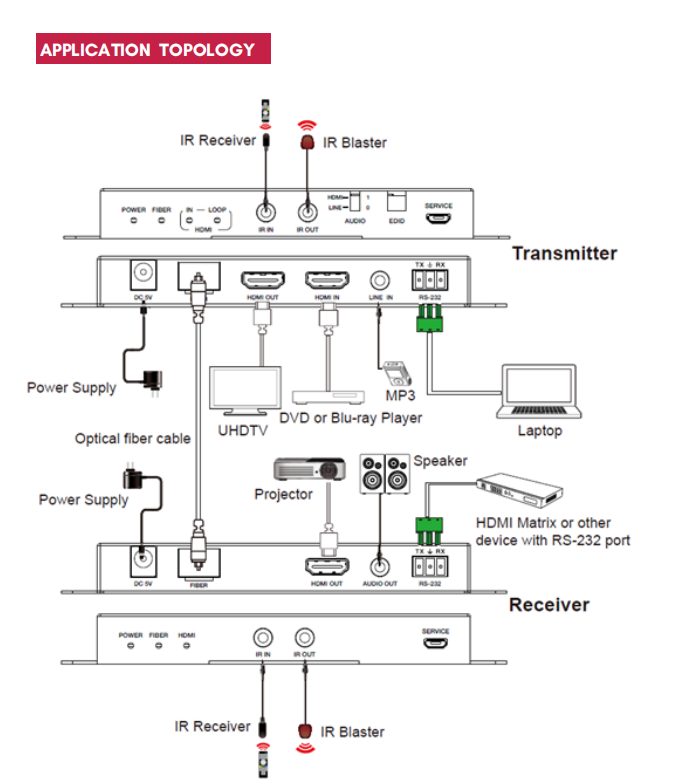

HDMI2.0 to Fiber Extender.png

How They Work

Conversion: The transmitter converts the electrical HDMI signal into light pulses.
Transmission: These light pulses travel through the optical fiber (single or multimode).
Reconversion: The receiver converts the light pulses back into an electrical HDMI signal for the display.

Product Specification

Key Features & Benefits

Long-Distance Extension: Extends 4K@60Hz signals far beyond copper limits (e.g., up to 300m/1000ft with multimode, or further with single-mode fiber).
High-Resolution Support: Transmits uncompressed 4K (4096x2160) at 60Hz with 4:4:4 chroma subsampling.
HDR & HDCP 2.2: Supports High Dynamic Range (HDR) and High-bandwidth Digital Content Protection (HDCP 2.2).
Immunity to Interference: Fiber optic cables are immune to EMI/RFI, ensuring signal integrity.
Compact & Convenient: Often features compact, pluggable designs (like SFP/SFP+) with locking power/HDMI ports and sometimes includes IR/RS232 pass-through.
Lossless Transmission: Delivers lossless, zero-latency video for critical applications.
